Truncated Normal Distribution

Where will you meet this distribution?

• Econometrics : probit model, tobit model

• Marketing

  "Use of the Left-Truncated Normal Distribution for Improving Achieved Service Levels" by Arvid C. Johnson

• Agriculte

  "Modeling Nonnegativity via Truncated Logistic and Normal Distributions: An Application to Ranch Land Price Analysis" by Feng Xu et al.

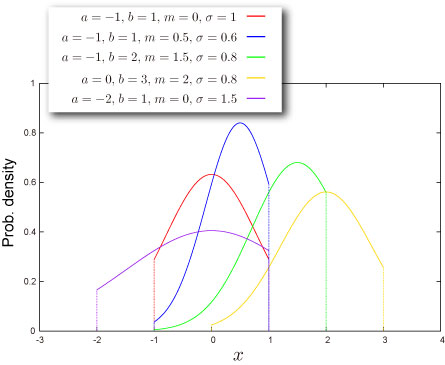

Shape of Distribution

Basic Properties

• Four parameters $a, b,m,\sigma$ are required (How can you get these).

  $$a<b$$ $$\sigma>0$$

• Continuous distribution defined on bounded range $a\leq x \leq b$

• This distribution can be symmetric or asymmetric.

Probability

• Cumulative distribution function

  $$F(x)=\frac{1}{\Delta}\left[\Phi\left(\frac{x-m}{\sigma}\right)-\Phi(A)\right]$$

  where

  $$\Delta=\Phi(B)-\Phi(A)$$ $$A=\frac{a-m}{\sigma},\;B=\frac{b-m}{\sigma}$$

  and $\Phi(\cdot)$ is cumulative distribution function of standard normal distribution.

• Probability density function

  $$f(x)=\frac{1}{\sigma\Delta}\phi\left(\frac{x-m}{\sigma}\right)$$

• How to compute these on Excel.

	A	B
1	Data	Description
2	2.5	Value for which you want the distribution
3	1	Value of parameter Min
4	4	Value of parameter Max
5	3	Value of parameter M
6	0.9	Value of parameter Sigma
7	Formula	Description (Result)
8	=NTTRUNCNORMDIST(A2,A3,A4,A5,A6,TRUE)	Cumulative distribution function for the terms above
9	=NTTRUNCNORMDIST(A2,A3,A4,A5,A6,FALSE)	Probability density function for the terms above

• Function reference : NTTRUNCNORMDIST

Quantile

• Inverse of cumulative distribution function

  $$F^{-1}(P)=\sigma\Phi^{-1}\left[\Delta P+\Phi(A)\right]+m$$

  where

  $$\Delta=\Phi(B)-\Phi(A)$$ $$A=\frac{a-m}{\sigma},\;B=\frac{a-m}{\sigma}$$

  and $\Phi(\cdot)$ is cumulative distribution function of standard normal distribution.

• How to compute this on Excel.

	A	B
1	Data	Description
2	0.5	Probability associated with the truncated normal distribution
3	1	Value of parameter Min
4	4	Value of parameter Max
5	3	Value of parameter M
6	0.9	Value of parameter Sigma
7	Formula	Description (Result)
8	=NTTRUNCNORMINV(A2,A3,A4,A5,A6)	Inverse of the cumulative distribution function for the terms above

• Function reference : NTTRUNCNORMINV

Characteristics

Mean -- Where is the "center" of the distribution? (Definition)

• Mean of the distribution is given as

  $$m+\frac{\phi(A)-\phi(B)}{\Delta}\sigma$$

  where

  $$\Delta=\Phi(B)-\Phi(A)$$ $$A=\frac{a-m}{\sigma},\;B=\frac{a-m}{\sigma}$$

  , $\Phi(\cdot)$ and $\phi(\cdot)$ are probability density function and cumulative distribution function of standard normal distribution respectively.

• How to compute this on Excel

	A	B
1	Data	Description
2	1	Value of parameter Min
3	4	Value of parameter Max
4	3	Value of parameter M
5	0.9	Value of parameter Sigma
6	Formula	Description (Result)
7	=NTTRUNCNORMMEAN(A2,A3,A4,A5)	Mean of the distribution for the terms above

• Function reference : NTTRUNCNORMMEAN

Standard Deviation -- How wide does the distribution spread? (Definition)

• Variance of the distribution is given as

  $$\left[1+\frac{A\phi(A)-B\phi(B)}{\Delta}-\left(\frac{\phi(A)-\phi(B)}{\Delta}\right)^2\right]\sigma^2$$

  where

  $$\Delta=\Phi(B)-\Phi(A)$$ $$A=\frac{a-m}{\sigma},\;B=\frac{a-m}{\sigma}$$

  , $\Phi(\cdot)$ and $\phi(\cdot)$ are probability density function and cumulative distribution function of standard normal distribution respectively.

  Standard Deviation is a positive square root of Variance.

• How to compute this on Excel

	A	B
1	Data	Description
2	1	Value of parameter Min
3	4	Value of parameter Max
4	3	Value of parameter M
5	0.9	Value of parameter Sigma
6	Formula	Description (Result)
7	=NTTRUNCNORMSTDEV(A2,A3,A4,A5)	Standard deviation of the distribution for the terms above

• Function reference : NTTRUNCNORMSTDEV

Skewness -- Which side is the distribution distorted into? (Definition)

• Skewness of the distribution is given as

  $$-\frac{1}{V^{3/2}}\left[2\Delta_0+(3\Delta_{1}-1)\Delta_0+\Delta_2\right]$$

  where

  $$z(x)=\frac{\phi(x)}{\Delta}$$ $$\Delta_k=B^kz(B)-A^kz(A)$$ $$V=1-\Delta_1-\Delta_0^2$$ $$\Delta=\Phi(B)-\Phi(A)$$ $$A=\frac{a-m}{\sigma},\;B=\frac{a-m}{\sigma}$$

  , $\Phi(\cdot)$ and $\phi(\cdot)$ are probability density function and cumulative distribution function of standard normal distribution respectively.

• How to compute this on Excel

	A	B
1	Data	Description
2	1	Value of parameter Min
3	4	Value of parameter Max
4	3	Value of parameter M
5	0.9	Value of parameter Sigma
6	Formula	Description (Result)
7	=NTTRUNCNORMSKEW(A2,A3,A4,A5)	Skewness of the distribution for the terms above

• Function reference : NTTRUNCNORMSKEW

Kurtosis -- Sharp or Dull, consequently Fat Tail or Thin Tail (Definition)

• Kurtosis of the distribution is given as

  $$\frac{1}{V^2}\left[-3\Delta_0^4-2\Delta_0^2(3\Delta_1+1)-4\Delta_2\Delta_0-3\Delta_1-\Delta_3+3\right]-3$$

  where

  $$z(x)=\frac{\phi(x)}{\Delta}$$ $$\Delta_k=B^kz(B)-A^kz(A)$$ $$V=1-\Delta_1-\Delta_0^2$$ $$\Delta=\Phi(B)-\Phi(A)$$ $$A=\frac{a-m}{\sigma},\;B=\frac{a-m}{\sigma}$$

  , $\Phi(\cdot)$ and $\phi(\cdot)$ are probability density function and cumulative distribution function of standard normal distribution respectively.

• How to compute this on Excel

	A	B
1	Data	Description
2	1	Value of parameter Min
3	4	Value of parameter Max
4	3	Value of parameter M
5	0.9	Value of parameter Sigma
6	Formula	Description (Result)
7	=NTTRUNCNORMKURT(A2,A3,A4,A5)	Kurtosis of the distribution for the terms above

• Function reference : NTTRUNCNORMKURT

Random Numbers

• Random number x is generated by inverse function method, which is for uniform random U,

  $$x=\sigma\Phi^{-1}\left[\Delta U+\Phi(A)\right]+m$$

  where

  $$\Delta=\Phi(B)-\Phi(A)$$ $$A=\frac{a-m}{\sigma},\;B=\frac{a-m}{\sigma}$$

  , $\Phi(\cdot)$ and $\phi(\cdot)$ are probability density function and cumulative distribution function of standard normal distribution respectively.

• How to generate random numbers on Excel.

	A	B
1	Data	Description
2	1	Value of parameter Min
3	4	Value of parameter Max
4	3	Value of parameter M
5	0.9	Value of parameter Sigma
6	Formula	Description (Result)
7	=NTRANDTRUNCNORM(100,A2,A3,A4,A5,0)	100 truncated normal deviates based on Mersenne-Twister algorithm for which the parameters above

Note The formula in the example must be entered as an array formula. After copying the example to a blank worksheet, select the range A7:A106 starting with the formula cell. Press F2, and then press CTRL+SHIFT+ENTER.

NtRand Functions

• If you already have parameters of the distribution
  • Generating random numbers based on Mersenne Twister algorithm: NTRANDTRUNCNORM
  • Computing probability : NTTRUNCNORMDIST
  • Computing quantile : NTTRUNCNORMINV
  • Computing mean : NTTRUNCNORMMEAN
  • Computing standard deviation : NTTRUNCNORMSTDEV
  • Computing skewness : NTTRUNCNORMSKEW
  • Computing kurtosis : NTTRUNCNORMKURT
  • Computing moments above at once : NTTRUNCNORMMOM
• If you know mean and standard deviation of the distribution
  • Estimating parameters of the distribution:NTTRUNCNORMPARAM

Reference

• Wikipedia -- Truncated normal distribution
